Specification:

  •  Wheel: 10 inch tire
  •  Battery specification: 10 AH

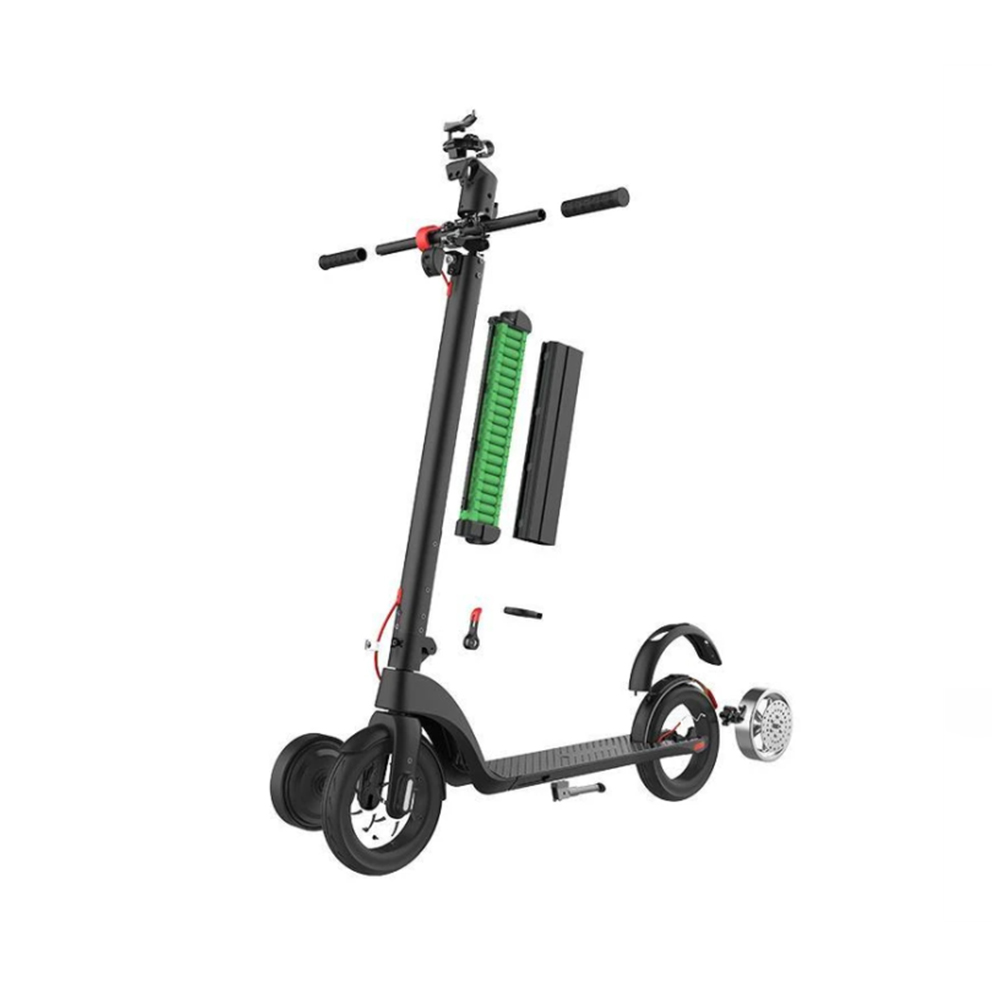

  •  Replaceable battery prolong riding distance.
  •  Pedal Width : 15cm
  •  Motor power: 36V/350W
  •  LCD Display dynamically shows speed & battery capacity
  •  Front LED light enable night riding
  •  Electric brake,Disc / Manual brake
  •  Material: Aluminum (AL)
  •  Foldable bar
  •  Accelerometer
  •  Max. Speed: 25 km / h
  •  Max. Range: 20-30 miles (32-48 km)
  •  Load: 150 kg (330 lbs)
  • Unfolding size: L*W*H=1083*420*1186 mm

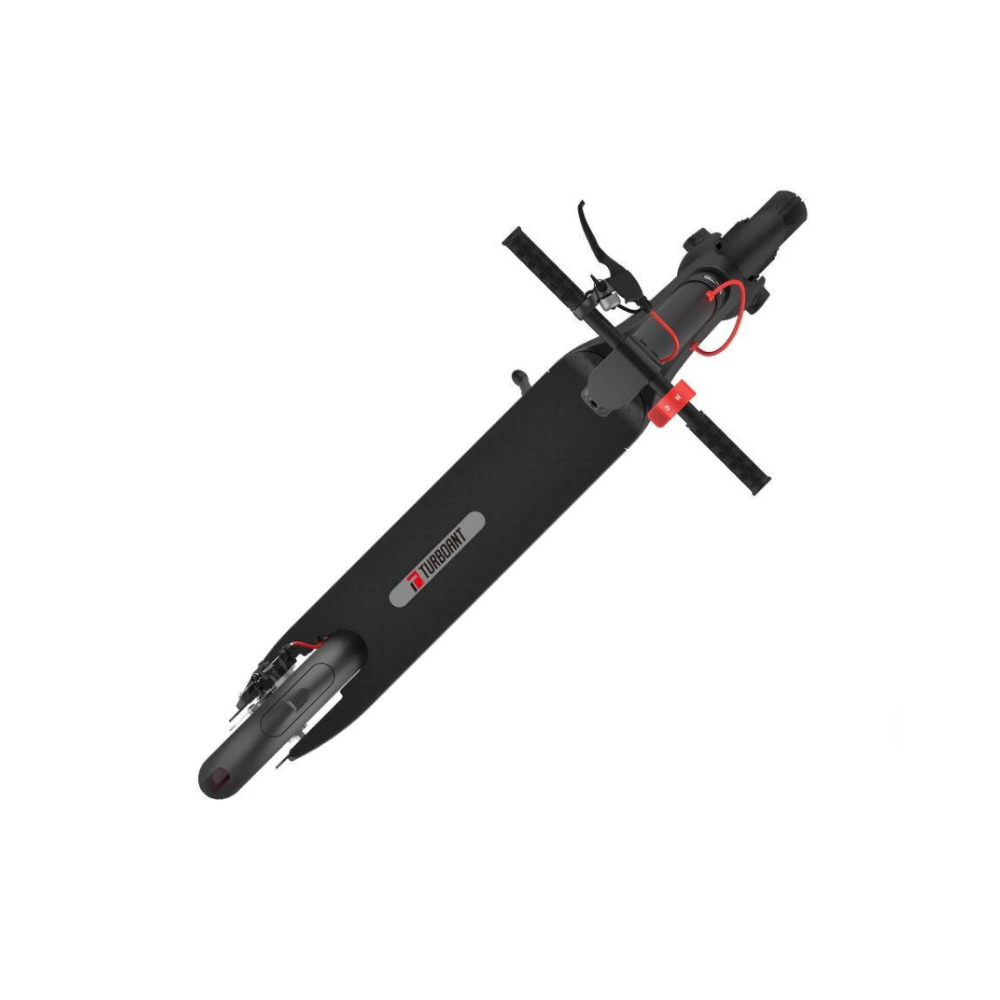

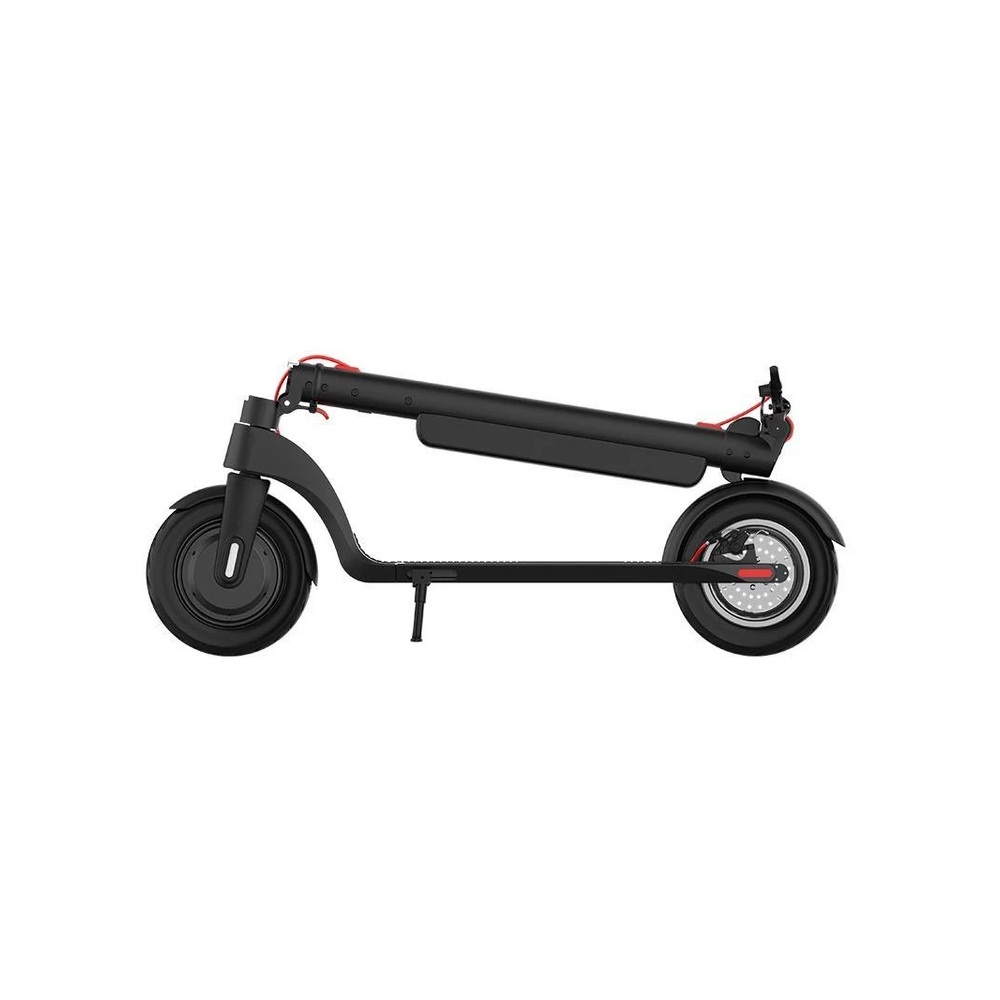

  • Folding size: L*W*H=1083*420*460 mm

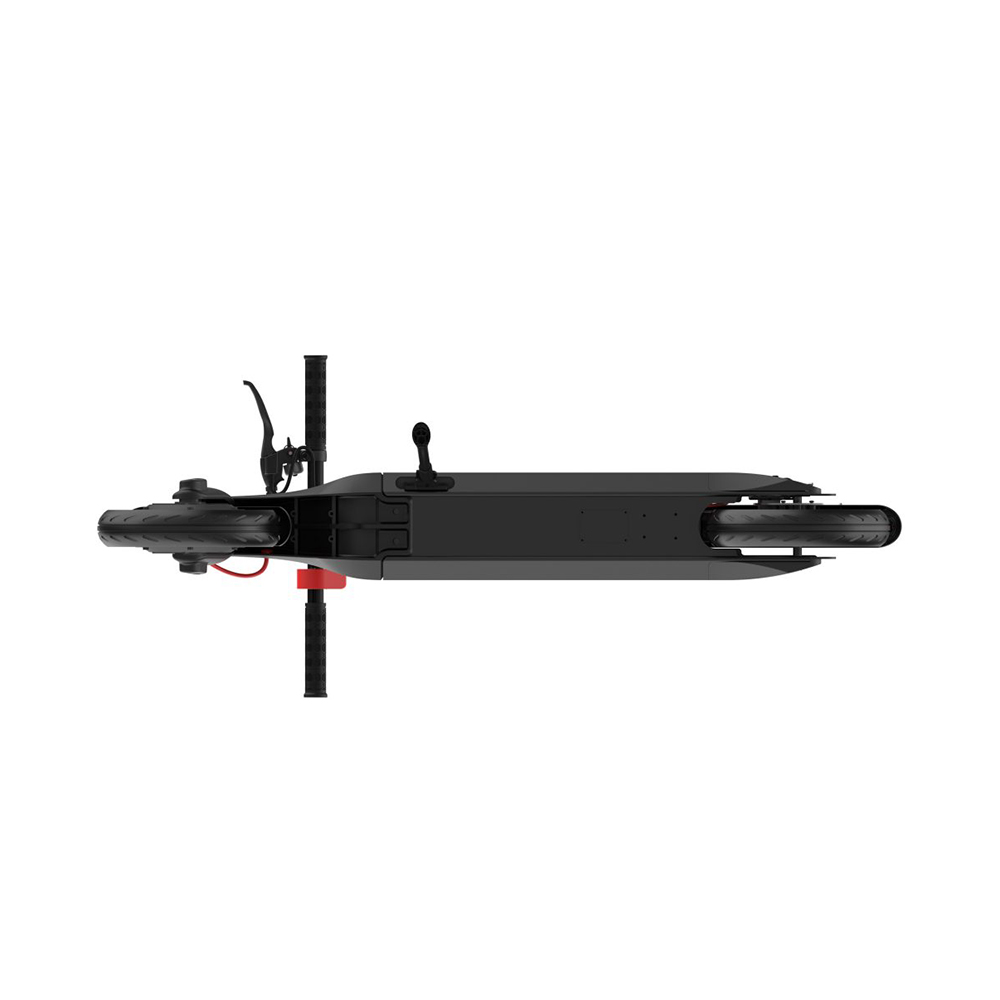

AOVO X8 SPECIFICATION CHART

Full technical specification for HX X8 electric scooter.

Product Information Model AOVO X8
Unfolded Size 42.6 × 16.5 × 46.7 in (1083 × 420 × 1186 mm)
Folded Size 42.6 × 16.5 × 18.1 in (1083 × 420 × 460 mm)
Ground Clearance 4.5 in (115 mm)
Product Weight 33 lb (15 kg)
Patent No. 2018301584216
Adapter Input Voltage 100-240 V, 50/60 Hz
Drive System Motor 36 V, 350 W

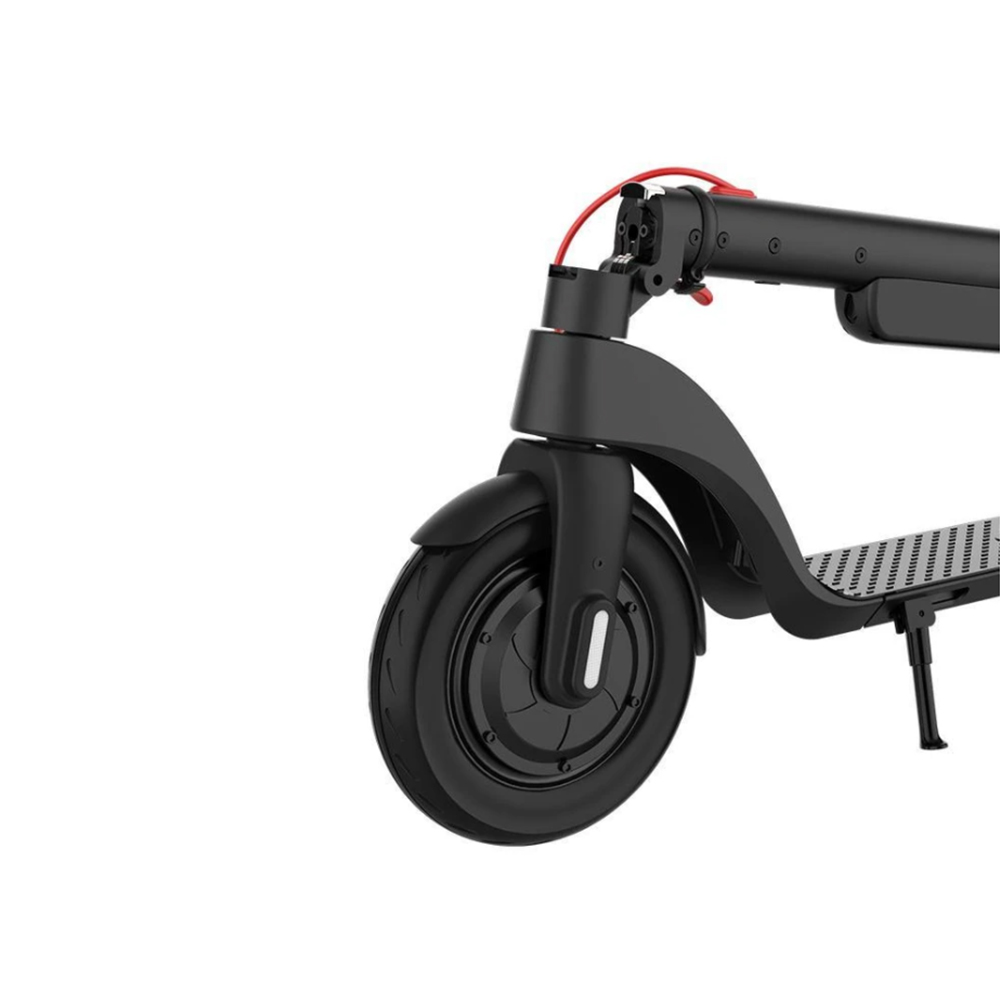

Tire (Front & Rear) 10-inch, tubed pneumatic tires
Max Speed 25 km/h
Range 20-30 miles (32-48 km)
Max Climbing Capability 15°
Max Load

150 kg (330 lbs)

Functions Foldable Stem Yes

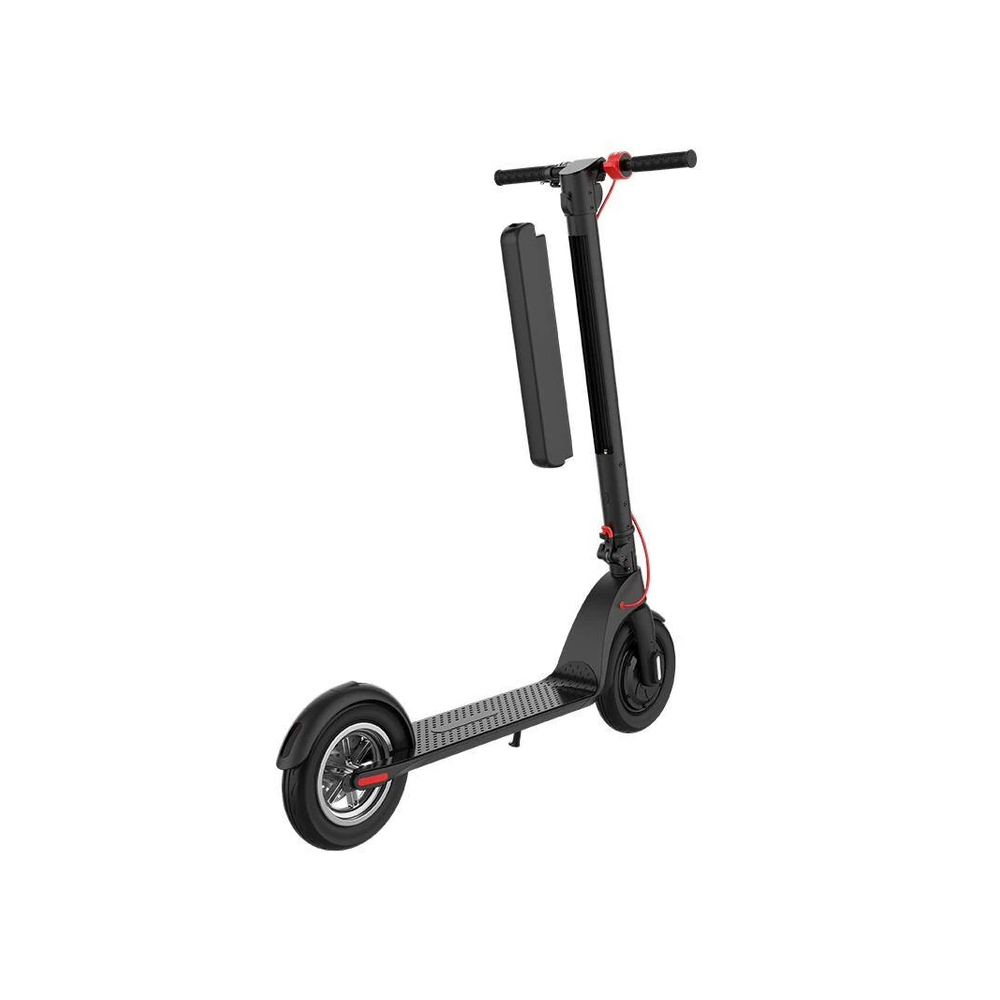

Battery Pack Detachable
Brake System Electronic throttle control, disc brake and and foot brake
Speed 3 settings (linear adjustment)
Illumination LED headlight + taillight (3 W)
Warning Function Bell
IP Rating IPX4
Operating Conditions Operating Temperature 32 to 95 °F (0 to 35 °C)
Storage Temperature 14 to 104 °F (-10 to 40 °C)

BATTERY SPECIFICATIONS

Type Li-ion
Charging Time Approx. 6 hours
Voltage 36 V
Capacity 10 Ah, 360 Wh
Operating Temperature 32 to 95 °F (0 to 35 °C)
Charging Temperature 50 to 95 °F (10 to 35 °C)
Max Charging Voltage/Current 42 V, 2 A
Storage Temperature 14 to 104 °F (-10 to 40 °C)
Storage Time 3 months (after a full charge)

CHARGER SPECIFICATIONS

Model FY-4202000
Manufacturer Shenzhen Fuyuandian Power Co., Ltd.
Input 100-240 V AC, 50/60 Hz
Output 42 V DC, 2 A
Weight 15 kg
Dimensions 1083 × 420 × 1186 mm
